Name: Steam Single Facer For Corrugated Cardboard Production 1400 Model Alloy Corrugating Rolls
Brand: Cangzhou Gerun Machinery Co.,Ltd
SKU: GR-SSF1400
Price: 76.00 USD
Availability: InStock

特徴ギャラリー製品の説明見積依頼

特徴

仕様

製品名: 段ボールの生産ライン 1400 モデルのための蒸気シングルフェーサー

カテゴリ: 段ボール生産ライン

モデル: 1400

色: カスタマイズ可能

幅: 1400mm

設計速度: 80～100m/分

力: 5.5KW

重さ: 3 T

基本情報

起源の場所: 滄州，中国

ブランド名: GERUN

証明: ISO,CE

モデル番号: GR-SSF1400

お支払配送条件

パッケージの詳細: プラスチックフィルムカバーまたは木製ケースの包装 (選択)

受渡し時間: 15~60仕事日

支払条件: T/T、D/P、D/A、マネーグラム、ウェスタンユニオン、L/C

供給の能力: 30セット/月

ギャラリー

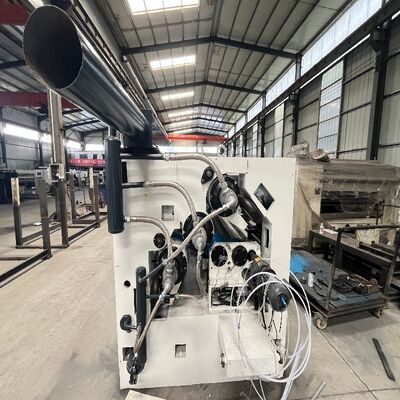

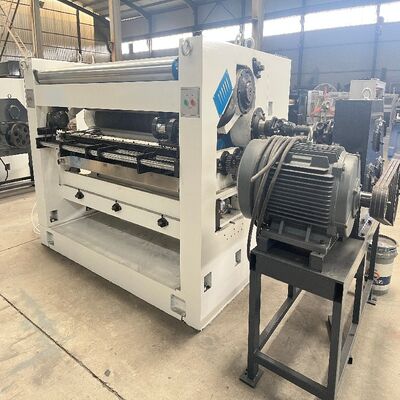

Steam Single Facer For Corrugated Cardboard Production 1400 Model Alloy Corrugating Rolls

製品の説明

Steam Single Facer For Corrugated Cardboard Production Line 1400 Model 3 Tons

The single-face corrugating unit (commonly known as the "single facer") is the core forming equipment of a corrugated board production line. You can think of it as the "heart" of the entire production line.

Its core task is very clear: to press flat base paper (fluting) into wavy corrugations and bond it with another flat sheet of linerboard, producing single-face corrugated board.

Workflow Process

The single facer completes the transformation from base paper to formed board through a set of precise mechanical components:

Corrugating: The base paper (fluting) passes through high-temperature (typically 160°C-180°C) corrugating rolls, where it is pressed into standard U-shaped or V-shaped flutes.
Adhesive Application: The tops of the formed flutes are coated with an even layer of adhesive (starch or corn-based glue).
Laminating: The glued flutes and the linerboard are precisely bonded together under the pressure roll, forming a sturdy single-face corrugated board.

Production Line Role

Supplies the Basic Unit: The single-face corrugated board it produces is the foundation for subsequent processing. In the double facer process, two single-face boards are combined to ultimately produce three-ply, five-ply, or seven-ply corrugated board.
Determines Board Quality: The forming quality of the flutes, adhesive strength, and flute profile stability are all directly determined by the single facer. If problems occur here (e.g., crushed flutes, delamination), subsequent processes cannot compensate.
Efficiency Bottleneck: The operating speed of the single facer usually determines the maximum production rate of the entire line.

Structural Features

The suction type structure, designed to cover high pressure powerful fan. After the wind, the air source device with censored and electrical control on the same operation counters, the distance from the host machine will not less than 1.5 meters, operating side closed all the hood.

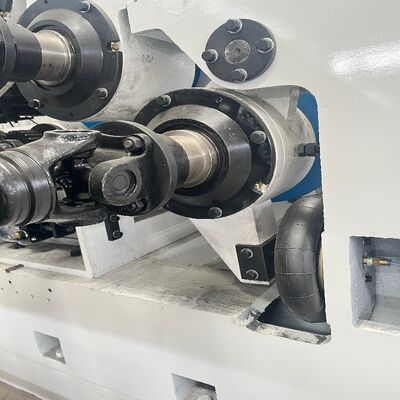

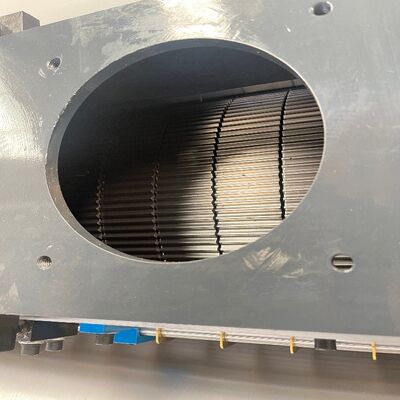

Corrugated roller adopt 52 CrMo alloy steel, the conditioning, laser quenching, surface polishing, corrugated roller diameter 280 mm, surface hardness HRC60 degrees. Key parts tile roller, pressure roller bearing used in wafangdian bearing resistance to high temperature.

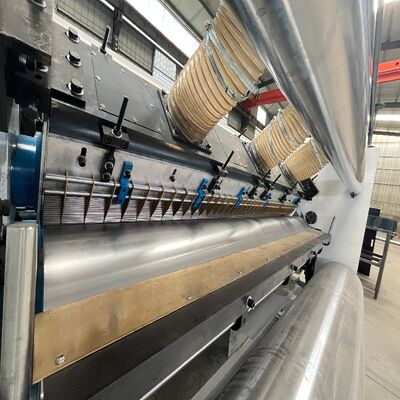

Glue wallboard board structure, pneumatic control back to glue, glue rubber roller surface 25 pits processing line network hard chromium plating processing, scraping the plastic roller surface is hard chromium plating processing grinding.

Product Details

Technical Specifications

Product Name	Steam Single Facer For Corrugated Cardboard Production Line
Category	Corrugated Cardboard Production Line
Model	1400
Width	800~1400mm
Colour	Customizable
Weight	3 T
Design Speed	80~100m/min
Power	5.5kw
