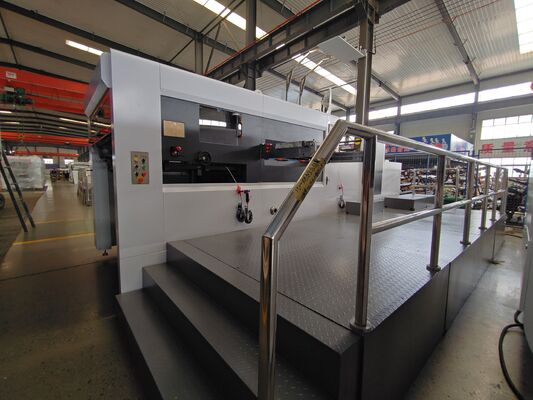

MY1300 Automatic Die Cutting And Creasing Machine With Lead Edge Feeder
| Description |
1. Lead edge feeder(Under suction feeder)
1) Equipped with lead edge feeder ,it can prevent the cardboard damage by the black wheels.
2) Independent servo actuator can assure the cardboard send to right position and avoid crash on the paper
3) The big power suction fan and the adjusted wind system work for 3-9mm corrugated box.
2. Feeding table
1) Adjustable brush wheels and pressing wheels to ensure precise position to enter into front and side lay.
2) Advance push and pull lay of registration can assure the die cutting precision.
3) Rikko light front lay detection system prevent the slanting paper move in main body.
4) The lifting of the brush wheel frame is controlled by cylinder. Easy to operate.
3. Main body
1. Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI.
2. Patented design shock absorption system can prolong the life of main body and increase the pressure.
3. The intermittent gearbox made in Taiwan can assure the accurate registration and decrease the gripper attack.
4. Stripping section
1) Double action movement structure with upper and lower stripping frame facilitates die change.
2) Male/female diecutter model are available for different carton.
3) Match with the centerline registration system in diecutting area, there is a same system in the stripping section.Accurate positions can increase production efficiency.
4) Gripper front edge waste removal system for higher production efficiency.
5. Die-cutting part and Delivery system
1) Diecutting chase fixed accurately by pneumatic lock system.
2) Diecutting plate is putted in and out by air floating device.
3) Electric clutch system of main chain can assure the chain steady when it is stopped at high speed.
4) Main chain and assist chain is lubricated periodically controlled by PLC.
5) Protection window of diecutting can hold the main body clean.
6) Lightweight and durable aluminum alloy gripper bars with chain of Renold UK or IWIS GERMANY ensure accurate.
6. Paper collecting part
1) Back aligning paper, side aligning paper to ensure the automatic paper feeding orderly, the structure of paper collecting machine is simple, quick operation. Back aligning paper adjusted by electric, three times faster than the manual operating, the operation is simple and convenient.The operator can monitor the back aligning paper in front of machine.Back aligning paper equips with double detection switch to monitor paper in order. It can also take samples when machine running.It will alarm automatically when paper collecting reach the order to remind the operator replace the paper collecting platform.
2) Quantitative paper: Can set the arbitrary value from 10 to 9999, it will off automatically when the paper reaches the set value.
| Parameters |
| Item | Parameters |
| Model | MY-1300 |
| Die cutting type | Pressed flat die cutting(Lower side is movable while upper side is unmovable) |
| Max paper transmitting size | 1320*980 mm |
| Min paper transmitting size | 400*380 mm |
| Max die cutting size | 1300*960 mm |
| Min gripper size | 6-8 mm |
| Max die cutting pressure | 350 N/cm² |
| Paper processed |
Corrugated board: 1-10mm |
| Max die cutting speed | 5000 sheets/h |
| Max feeding pile height | 1400 mm(above the level) |
| Min feeding pile height | 1250 mm(above the level) |
| Main motor power | 11 kw |
| Total power | 27 kw |
| Total weight | 18 T |
| Packing and Shipping |
1. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road.
2. Transportation and various types of weather conditions. A full set of maintenance and operation.
3. Manuals is included.
